Opening and Closing Hood

Avoid injury! Never store flammable, heavy, or loose breakable objects in the storage tray. Always latch hood before operating machine.

Avoid damage! Do not store items that prevent the hood from closing properly. Properly secure loose or sharp items, which damage the storage tray or other items within the tray.

1. Park the machine safely. (See Parking Safely in SAFETY.)

2.

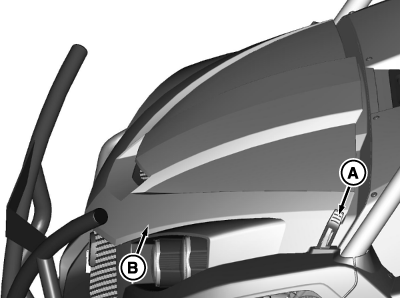

   MXT013621-UN-24MAR15

   Release rubber latch (A) attached to each side of machine.

---




3. Raise hood (B).

4. Close hood (B). Secure with two rubber latches (A).
