Removing and Installing Side Panels

  1. Park machine safely. (See Parking Safely in SAFETY.)

  2. Tilt seats forward.

  3. Raise cargo box.

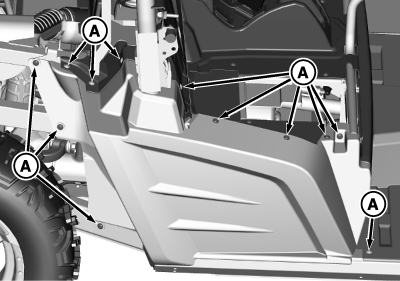

  4. MXT013957
    MXT013957-UN-07APR15

    Picture Note: Right side shown with components removed for clarity.

    Remove twelve screws (A) and remove right side panel.


  5. Avoid injury! Gasoline is extremely flammable. DO NOT SMOKE. Always work in a well-ventilated area away from open flame or spark-producing equipment, including equipment that utilizes pilot lights.

    For left side panel: Remove fuel filler cap first, then remove twelve screws and side panel.

  6. Install fuel filler cap back on fuel tank.


Installation

Avoid damage! Check to be sure that no wire harness is pinched between frame and side panels when installing.

Installation is the reverse of removal.
