Adjusting Seat

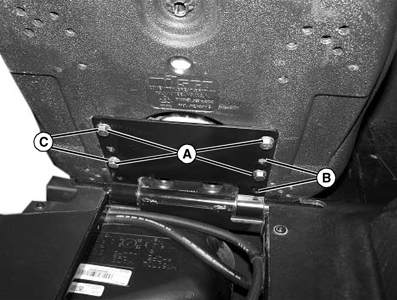

Standard Bucket Seats

  1. Tilt seat forward.

  2. MXAL45653
    MXAL45653-UN-09APR13

    Rear position shown.

    Remove cap screws (A).


  3. Slide seat to the forward (B) or rearward (C) position.

  4. Position bottom of seat against bracket and align correct holes with holes in seat.

  5. Install original hardware and tighten to specification.
    Seat HardwareTorque12 N·m (106 lb.-in.)


Sport Seats

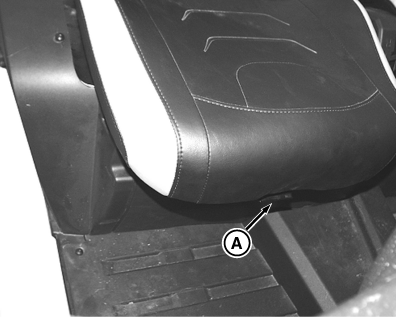

MXT005784
MXT005784-UN-02MAY13

A - Lift Lever

  1. Lift lever (A).

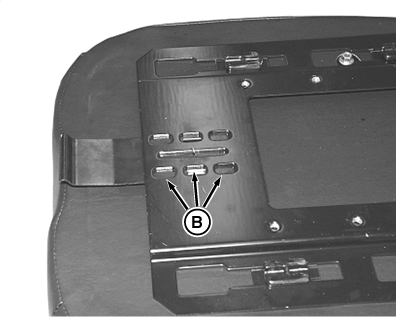

  2. MXT005785
    MXT005785-UN-02MAY13

    View from bottom of chair.

    B - Desired Positions

    Slide seat to one of three desired positions (B).

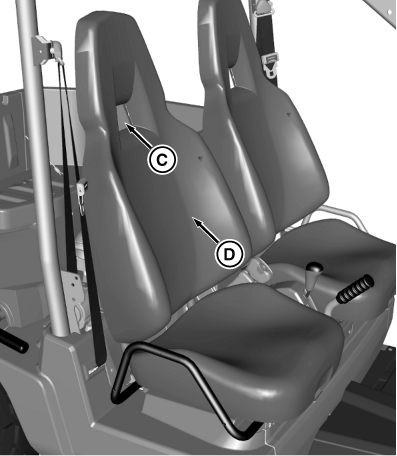

  3. MXT005786
    MXT005786-UN-02MAY13

    C - Window

    D - Seat

    To rotate seat forward, pull on upper seat, grasping in window area (C) near headrest to rotate seat (D) forward.

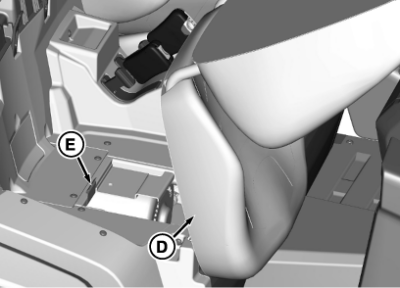

  4. MXT013960
    MXT013960-UN-24APR15

    D - Seat

    E - Clip

    Tilt seat (D) forward.

    • For passenger seat, tilt forward and off clip (E) behind seat.


  5. Lower back onto clip and slide seat with lift lever to desired operating position.
