Exit Lighting Operation

MXT019886-UN-17FEB17

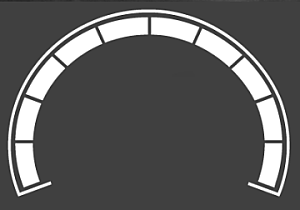

Countdown Timer

Function

A method for a “soft” shutdown of lighting after the key switch is turned off.

Operation

When the key switch is turned off, certain circuits remain on. Exit lighting uses a timed approach to remove power from these circuits. A countdown timer is visually represented using the ten segment bar display.
