Checking and Replacing Fuses

Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

1. Park the machine safely. (See Parking Safely in SAFETY section.)

2.

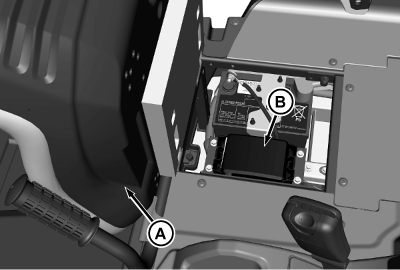

   MXT020171-UN-25MAY17

   Tilt passenger seat (A) forward.

---




3. Remove cover (B).

4.

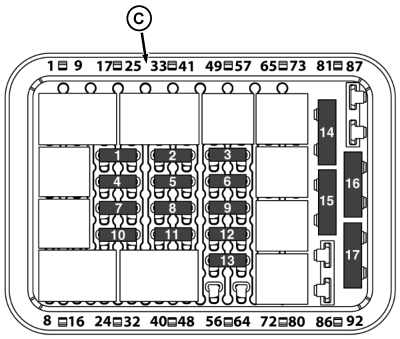

   MXT020172-UN-25MAY17

   860M fuse/relay block shown.

   Pull fuse from the fuse block (C) under seat.

---




5. Fuse identification:

   Position	Circuit	Fuse Size
   1	Brake Light	5 A
   2	Fuel Pump	15 A
   3	Power Port	10 A
   4	Key Switch Relay	20 A
   5	Instrument Cluster Control	20 A
   6	4WD/Differential Lock	15 A
   7	Starter	5 A
   8	Injectors/Coils	15 A
   9	Headlights	15 A
   10	Key Switch	15 A
   11	Load Shed	20 A
   12	Engine Control Unit	5 A
   13	Diagnostic Port	5 A
   14	Front Power	40 A
   15	Radiator Fan	15 A
   16	Switch Bank	40 A
   17	EPAS	35 A

6.

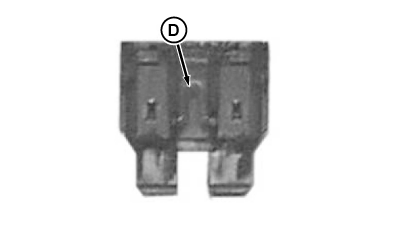

   MXT020165-UN-23MAY17

   Check visually for broken filament at location (D) in fuse.

---




7. Push new fuse of the correct amperage rating into proper position in the fuse block.

8. Install the fuse block cover.

9.

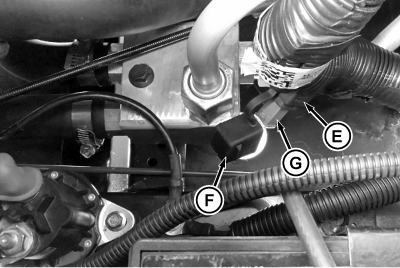

   MXT020179-UN-12JUN17

   Locate fuse holder (E) near the battery.

---




10. Remove cover (F) and remove fuse (G).

11. Check for a broken filament in the fuse.

12. Push new fuse of the correct amperage rating into fuse holder:

    Position	Circuit	Fuse Size
    —	Regulator	40 A

13. Install cover on the fuse holder.

14. Lower the seat.
