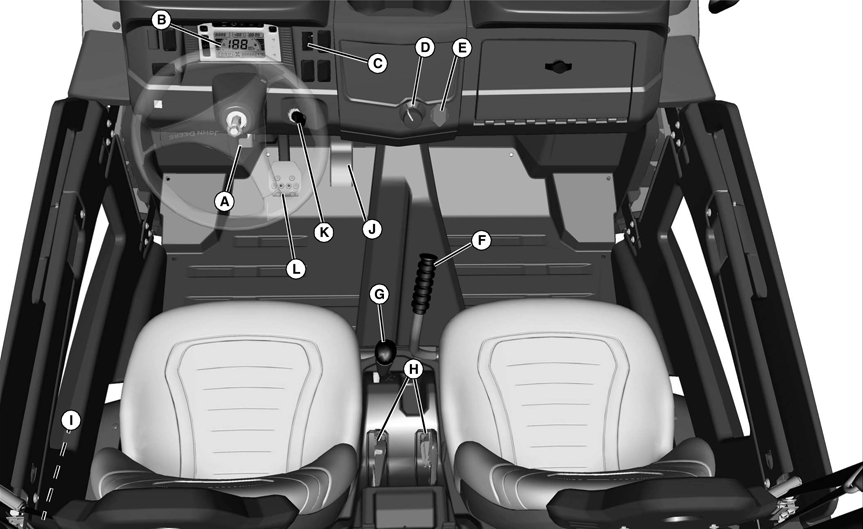

Operator Station Controls

MXAL45650-UN-09APR13

Some controls may not be installed on your machine.

Key	Description	Key	Description
A	Park Brake Pedal	H	Seat Belt
B	Instrument Panel	I	Fuel Tank Cap
C	Headlight Switch	J	Accelerator Pedal
D	2WD/4WD/Front Lock Selector	K	Ignition Key Switch
E	12V DC Accessory Outlet	L	Brake Pedal
F	Passenger Hand Hold
G	Transmission Shift Lever
