Using Travel Controls

1. Stop machine.

2. Allow engine to come to a low idle speed.

3. Do not shift gears when vehicle is moving or with engine running above low idle speed. Push down brake to stop vehicle motion and engage shift lever with a firm positive action.

   Always shift into low range when operating on wet or uneven terrain, or when towing or pushing heavy loads.

   If it is difficult to shift into gear, or grinding occurs, tap the throttle to increase rpm slightly and return to idle before attempting to shift again.

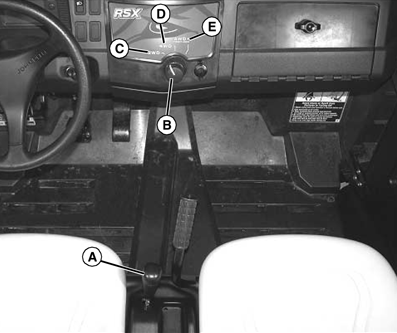

   MXAL45656-UN-09APR13

   Select a gear position:
   • Forward - Push transmission shift lever (A) forward to either High or Low range.
   • Reverse - Pull lever rearward to Reverse gear.
   • Neutral - Move lever in between Forward and Reverse positions.



---




4. Select 2WD or 4WD position:

   When turning knob to 4WD+FRONT LOCK position, push and turn knob.

   • Turn selector knob (B) to 2WD (C), 4WD (D), or 4WD+FRONT LOCK (E) position.



5. Look in the direction the machine will travel.

6. Reduce speed before braking or turning, when hauling loads, and while operating around obstacles or on hazardous off-road conditions.

   Push down accelerator pedal slowly and smoothly to begin machine travel.

7. Release accelerator and apply brake pedal evenly and firmly to slow down or stop.
