Carrier Kit

Do not install bracket on outside of cargo box. Do not allow secured load to go outside of cargo box.

MXAL45685-UN-09APR13

1. If installing on cargo box rails:

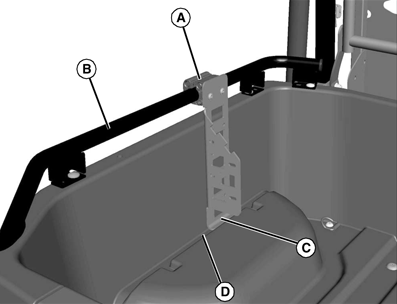

   1. Move brackets by loosening clamp (A) and sliding each bracket on cargo box rail (B) while keeping curved end (C) within channel (D) in cargo box. Secure position with clamp.
   2. Repeat procedure on opposite side, keeping each bracket at the same distance on both sides of cargo box.
