Lubricating Drive Line

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXAL45691
    MXAL45691-UN-09APR13

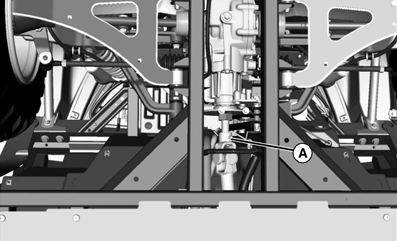

    Viewed from under the front of machine with shields removed.

    Lubricate grease fitting (A) on rear drive line with one or two shots of grease. Do not get grease on park brake rotor.



RH75544,00001A9-19-20130408
