Checking Coolant Level

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Open hood.

4.

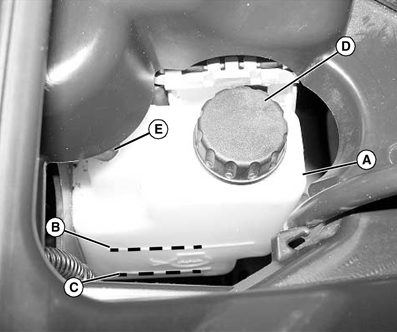

   MXAL45700-UN-09APR13

   Check recovery tank (A) coolant level:
   • If engine is warm, coolant level should be between the FULL line (B) and the LOW line (C).
   • If engine is cold, coolant level should be at the LOW line (C) on the recovery tank.



---




5. Remove recovery tank cap (D) if necessary to add coolant.

6. Add coolant mixture to recovery tank.

7. Installing suction hose (E) incorrectly will not allow coolant into the coolant system. Do not allow bottom of hose to touch bottom of bottle or bend upwards out of coolant.

   Install and tighten recovery tank cap.

8. Close hood.
