Checking 4WD Front Transmission Oil Level

1. Park the machine safely. (See Parking Safely in SAFETY.)

2. Allow machine to cool down for at least one hour.

3. Dirt and debris in oil may cause damage to the transmission. Clean area around opening before removing plug or dipstick.

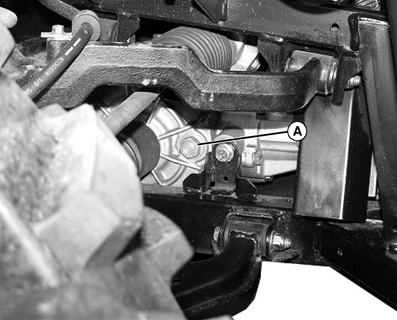

   MXAL45725-UN-09APR13

   Fill plug under left front side.

   Remove fill plug (A) located on left side of 4WD front transmission.

---




4. Oil should be level with the bottom of the fill port. If oil level is low:

   a. Add oil through fill port until level is correct.

   b. Install and tighten fill plug to specification.

   Front Transmission Fill Plug	Torque	45-54 N·m (33-40 lb-ft)
