Inspecting Steering Tie Rod Boots

  1. Park the machine safely. (See Parking Safely in SAFETY.)

  2. MXAL45735
    MXAL45735-UN-09APR13

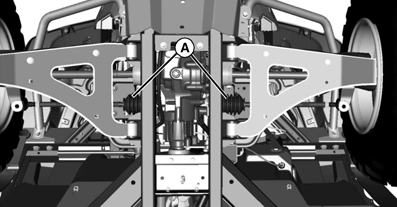

    View from under machine.

    Inspect two front steering tie rod boots (A) for tears or punctures.


  3. If replacement of a boot is necessary, see your John Deere dealer.

RH75544,00001BE-19-20130408
