Removing and Installing Seats

1. Park the machine safely. (See Parking Safely in SAFETY.)


Bucket Seat

  1. Tilt seat forward.

  2. MXAL45779
    MXAL45779-UN-09APR13

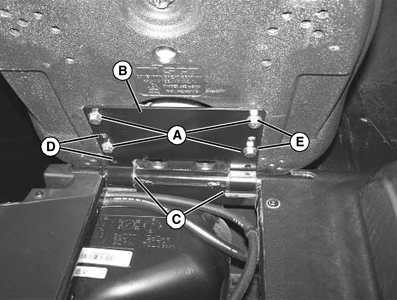

    Rear position shown.

    Hold seat and remove all screws (A).


  3. Remove seat and seat bracket (B) from seat bushings (C).

  4. To install seat, position seat bushings (C) on support rail so tabs face toward rear of machine.

  5. Position seat bracket (B) onto support rail so hinges fit around bushing tabs.

  6. Rotate seat bracket upward. Position bottom of seat against bracket and align correct holes with holes in seat.

  7. Slide seat to the forward (D) or rearward (E) position.

  8. Install original screws (A) and tighten to specification.
    Seat ScrewsTorque12.2 N·m (108 lb-in.)

RH75544,00001CE-19-20130408
