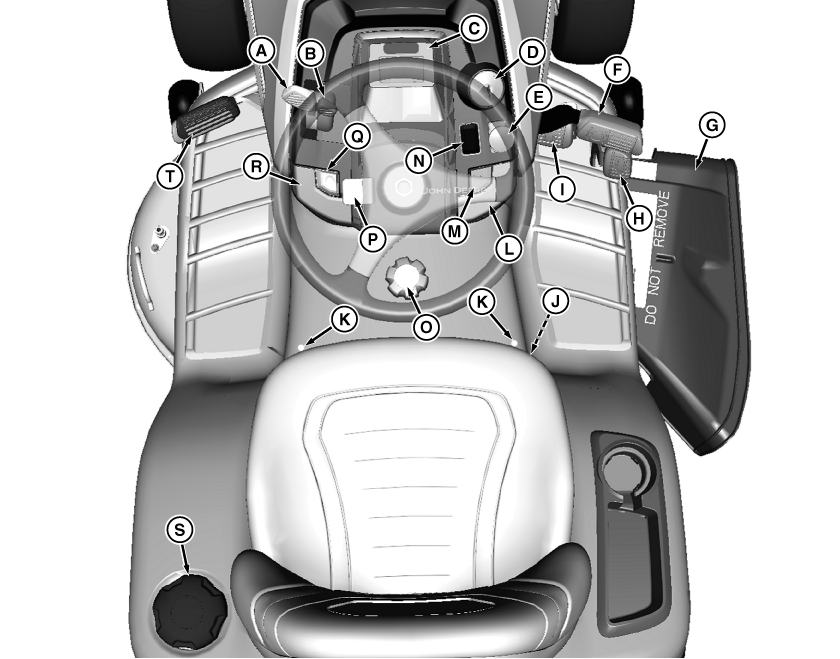

Operator Station Controls

MXT020496-UN-17MAY17

A - Throttle Control

B - Choke Control

C - Instrument Cluster

D - Key Switch

E - Mower Engagement Switch

F - Brake Pedal

G - Mower Deflector

H - Reverse Travel Pedal

I - Forward Travel Pedal

J - Seat Adjustment Lever

K - Mower Level Adjustment Ports

L - Park Brake Lever

M - Cruise Control Switch

N - Rocker Switch (If Equipped)

O - Mower Cutting Height Knob

P - Tilt Steering Lever (If Equipped)

Q - RIO Switch

R - Mower Lift Control (Mechanical and Hydraulic Lift)

S - Fuel Tank Cap

T - Mower Lift Pedal (Mechanical Lift Only)
