Replacing Fuse

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Lift hood.

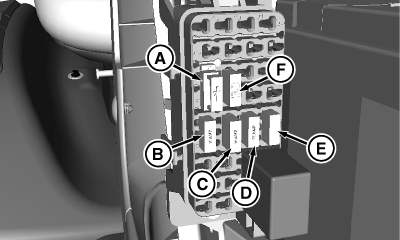

  3. MXT020497
    MXT020497-UN-16MAY17

    Pull blown diode (A), 15 Amp fuse (B), 10 Amp fuse (optional) (C), 20 Amp fuse (D), 7.5 Amp fuse (E), or 20 Amp fuse (F) out of socket.

    Fuse Identification

    Position

    Circuit

    Fuse Size

    A

    Diode



    B

    Main Circuit

    15 Amp

    C

    Accessory Port Circuit (Optional)

    10 Amp

    D

    Starter Circuit

    20 Amp

    E

    PTO Circuit

    7.5 Amp

    F

    Attachment Connector Circuit

    20 Amp


  4. Check metal strip in fuse window and discard fuse if strip is broken.

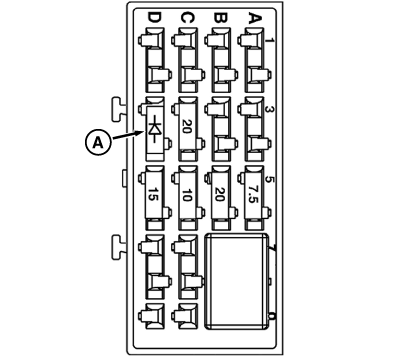

  5. Avoid damage! Install diode (A) with arrow pointing up as shown.

    MXT020504
    MXT020504-UN-19JUN17

    Push new diode (A), 20, 15, 10, or 7.5 Amp fuse into correct socket.


  6. Lower hood.

JK79365,000088E-19-20170620
