Adjusting Tilt Steering Wheel (If Equipped)

Avoid Injury! Do not attempt to adjust the steering wheel while the machine is moving. The operator can lose control of the machine.

  • Stop the machine before adjusting the steering wheel.
  • Lock the steering wheel in position before driving the machine.

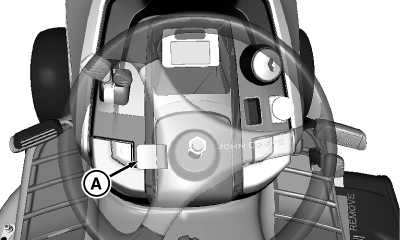

Steering wheel has five tilt positions:

MXT020500
MXT020500-UN-17MAY17

  • Lift and hold lever (A) up and move wheel to a comfortable operating position.
  • Release lever and move wheel slightly up or down until lever drops into the nearest position and locks wheel.

JK79365,0000892-19-20170517
