Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.

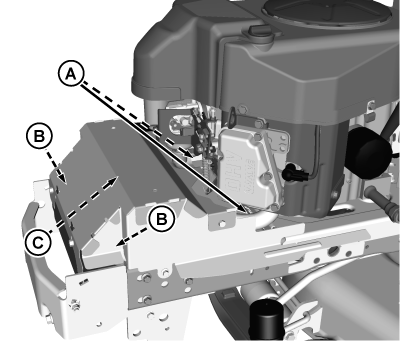

   MXT014246-UN-06JUL15

   Exhaust manifold (A), muffler pipe (B), muffler (found under muffler shield), and muffler shield (C).

---




2.

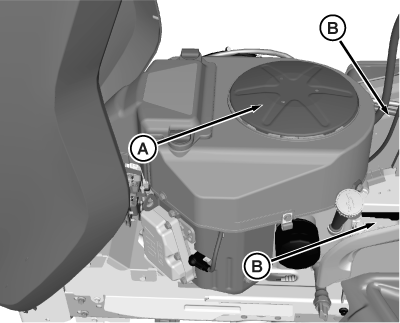

   MXT014237-UN-28MAY15

   Engine intake screen (A) and cooling fins (B).

---




3.

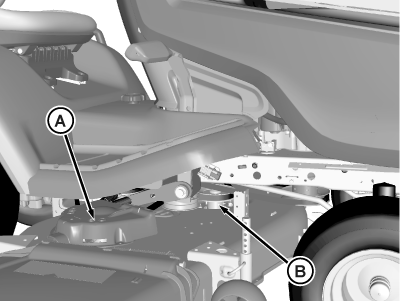

   MXT014238-UN-28MAY15

   Top of mower deck, under shields (A), including spindle (B) and belt areas.

---




4.

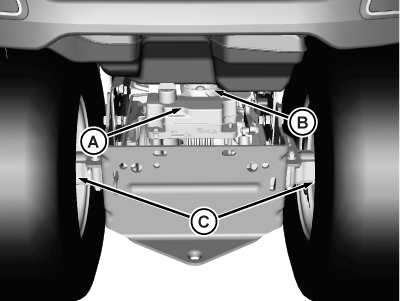

   MXT014239-UN-28MAY15

   On or near transmission (A), transmission fan (B), and driveline (C).

---




5.

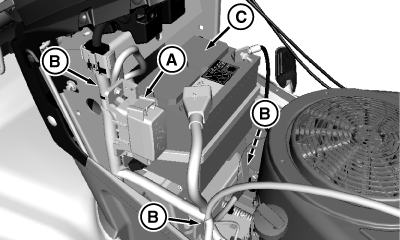

   MXT020506-UN-23MAY17

   On right side near fuse block (A), all wiring harnesses (B), and battery (C).

---
