Adjusting Seat

Adjusting Seat Position

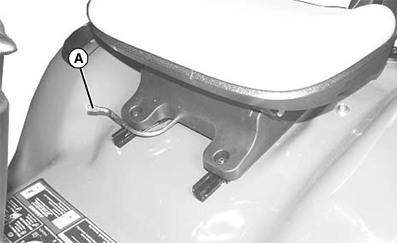

MXAL46346-UN-05APR13

1. Push lever (A) to the left.

2. Slide seat forward or rearward to desired position.

3. Release lever.

Adjusting Ride Comfort

Avoid damage! To prevent damage to seat switch and seat base, do not operate without suspension coils in place.

1. Lift seat.

2. Rotate suspension coils into desired position:

   •

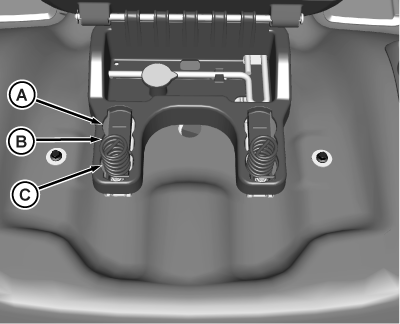

     MXT014248-UN-14MAY15

     Move coils to front position (A) for softest ride.

   ---

   • Move coils to middle position (B) for average ride.
   • Move coils to rear position (C) for firm ride.



   Additional suspension coils can be installed for extra support. See your John Deere dealer.

---
