Lubricating Pivot Points

42 Mowers:

•

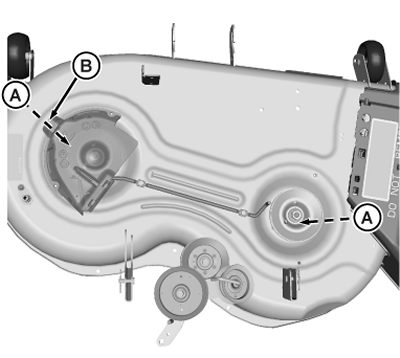

  MXT014265-UN-28MAY15

  42A mower shown.

  42A Mowers: Lubricate two mower spindle grease fittings (A) with two pumps of grease at specified interval. Lift on left spindle shield (B) to access left spindle grease fitting.

---

•

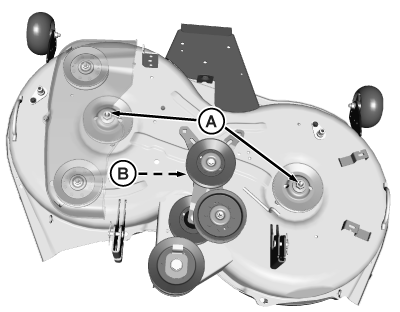

  MXT014266-UN-21MAY15

  42M mower shown.


  MXT014963-UN-06JUL15

  42M Mowers: Lubricate two mower spindle grease fittings (A) with two pumps of grease at specified interval. Lubricate idler arm pivot grease fitting (B) with two pumps of grease at specified interval.

---

48A and 54A Mowers:

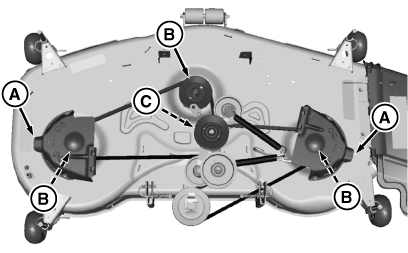

MXT014964-UN-10JUL15

54A mower shown.

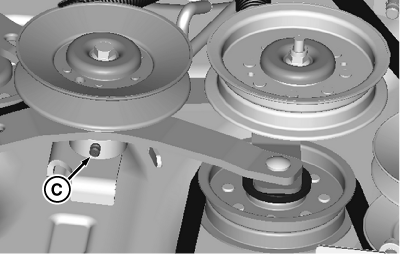

MXT014967-UN-06JUL15

• Lift on spindle side shields (A) and lubricate three mower spindle grease fittings (B) with two pumps of grease at specified intervals. Lubricate idler arm pivot grease fitting (C) with two pumps of grease at specified interval.
