Removing Mower (42A and 42M Mowers)

  1. Park machine safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine and muffler to cool completely.

  3. Avoid Injury! Rotating blades are dangerous. Before adjusting or servicing mower:

    • Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.
    • Always wear gloves when handling mower blades or working near blades.

    Adjust mower cutting height to lowest position.

  4. Avoid Injury! If the lift pedal is spring-assisted it may have unexpected movement.

    Lock the lift pedal when installing or removing mower deck.

    If the machine is equipped with a lift assist spring, lower deck and then pull lift pedal back by hand to lock lift lever.

    Lower mower deck, pull back lift pedal by hand, and pull lift lever up to lock.

  5. Avoid Injury! Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

    MXT014270
    MXT014270-UN-27MAY15

    42A Shown

    42A Mowers: Using a 3/8 in. ratchet, rotate and hold tension arm (A), under left side of fender deck, rearward, while removing mower belt (B) from engine sheave (C).


  6. MXT014312
    MXT014312-UN-28MAY15

    42M Shown

    42M Mowers: Using a 3/8 in. ratchet, rotate and hold tension arm (A), under right side of fender deck, forward, while removing mower belt (B) from engine sheave (C).


  7. MXT014271
    MXT014271-UN-27MAY15

    42A Shown

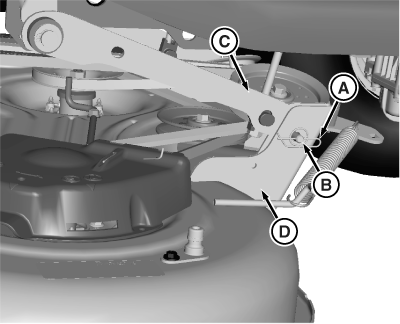

    Remove locking clip (A) and pin (B), and move rear draft arm (C) away from deck bracket (D). Raise deck slightly with deck handle to remove pressure on pin when pulling out. Repeat on other side.


  8. MXT014272
    MXT014272-UN-27MAY15

    Remove front draft rod (A) from mower bracket (B).


  9. When operating the machine without the mower deck:

    • Remove locking clip (C) from stud (D) on each side, and remove front draft rod from draft bracket (E). Note orientation of stud offset when removing, correct offset is above rod.

  10. Raise draft arms to transport position:

    1. Pull and hold lift pedal by hand.

    2. Unlock lift latch handle.

    3. Push lift pedal downward.

    4. Pull up latch handle to lock draft arms in transport position.

  11. Slide mower out from under machine.
