Cleaning Spark Arrestor

  1. MXT015031
    MXT015031-UN-02JUL15

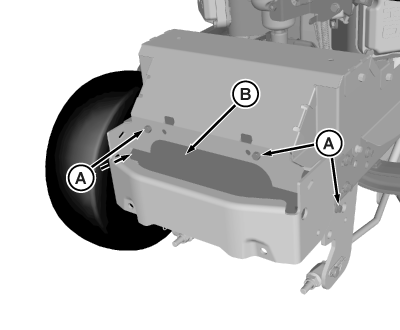

    Remove four cap screws (A) and muffler shield (B).


  2. MXT015032
    MXT015032-UN-02JUL15

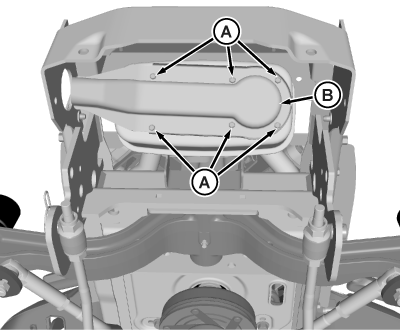

    Remove six screws (A), spark arrestor cover (B), and spark arrestor from engine.


  3. Inspect, clean, or if necessary, replace screen if damaged.

  4. Install spark arrestor on muffler exhaust pipe with original screws.

  5. Install muffler shield and tighten hardware.

    If muffler sustains damage during the removal or installation process, replace muffler.

MX52301,0000B64-19-20160606
