Checking Fuse Filaments

  1. Remove fuse.

  2. MXAL44294
    MXAL44294-UN-10APR13

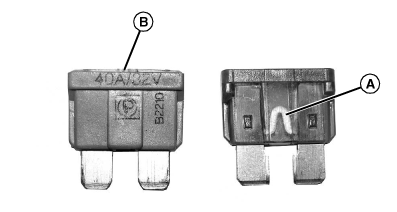

    Check visually for broken filament:

    • For clear housing fuses, check filament (A).
    • For all other fuses, check filament (B) in top of fuse housing.
