Using Ignition Key Switch

MXT020776-UN-28AUG17

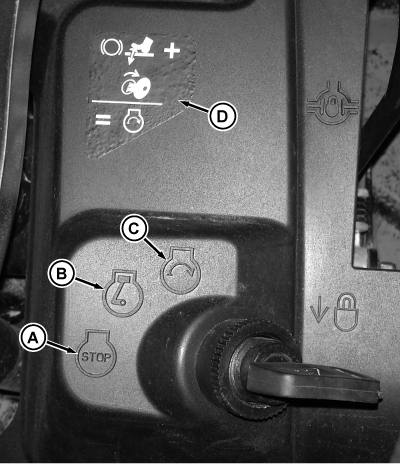

A - STOP Position - With key in STOP position, all switched power is off, and engine should not run.

B - RUN Position - Turn key from STOP to this position and all switched power circuits are on.

C - START Position - Turn key to START position to start the engine. Release key after engine has started and it automatically returns to the RUN position. The engine continues to run.

D - Depress the brake pedal and turn the key to the START position to start the engine.
