Using Instrument Cluster Controller

Depending on the machine model, some functions are not available.

MXT020153-UN-17MAY17

Some indicators may not be displayed on your machine.

“Troubleshooting Required” indicates that additional diagnosis is required to isolate the problem. See your Authorized John Deere Dealer for service.

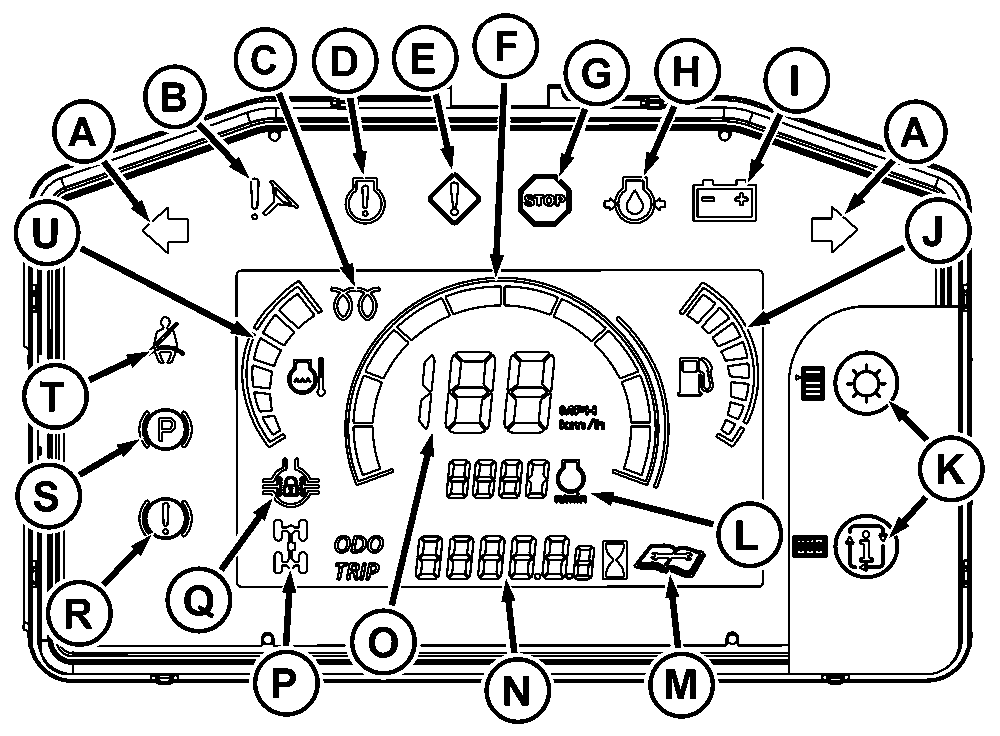

A - Turn Signal Indicator - The left or right signal indicator flashes when turn signal is active.

B - Electric Power Assist Steering (EPAS) Malfunction Indicator - This indicator illuminates or flashes when the EPAS system detects a fault. The level of assist may also be decreased. Troubleshooting is required.

C - Glow Plug Indicator - The indicator illuminates while the glow plugs are heating after the ignition key switch is placed in the RUN position. Depending on the temperature, the indicator turns off in approximately 0-10 seconds indicating that the engine can be started.

D - Engine Malfunction Indicator - This indicator illuminates or flashes when an engine fault has been detected. Troubleshooting is required.

E - Operator Alert Indicator - This indicator illuminates when a fault has been detected that does not require the machine to be stopped immediately. Troubleshooting is required.

F - Speedometer/Engine RPM Gauge - The bar gauge can be set to show engine or wheel speed.

G - Stop Indicator - This indicator illuminates or flashes alerting the operator to a condition that requires immediate attention and to stop the machine. Troubleshooting is required.

H - Low Engine Oil Pressure Indicator - This indicator illuminates or flashes when the engine is running and the engine oil pressure is too low. Troubleshooting is required.

I - Battery Indicator - This indicator illuminates or flashes when a low or high voltage has been detected. Turn off electrical loads.

J - Gas Gauge - The bar graph has eight segments representing actual fuel level. Each bar displays approximately 1/8 of a full fuel tank. If there is less than 1/8 of a tank (no bars illuminated) the gas symbol blinks.

K - Instrument Cluster Controller Buttons - These buttons are used to activate certain instrument cluster controller functions. For detailed instructions, see Using Instrument Cluster Controller Buttons in OPERATING Section.

L - RPM Gauge - This gauge shows a digital readout of the current engine RPM value.

M - System Diagnostic Indicator - This indicator illuminates or flashes for system malfunctions that do not have a specific indicator. Troubleshooting is required.

N - Odometer, Trip Meter, Hour Meter Gauge - This indicator shows the accumulated kilometers/miles the machine has traveled, along with a trip meter. The hour meter portion shows the accumulated number of operating hours the engine has run. The hour meter displays operating hours and accumulates and displays operating hours when the engine is running. The hour meter is intended to provide a means of monitoring machine usage for maintenance purposes. Use the hour meter to determine when your machine has reached the recommended service intervals.

O - Speedometer - The speedometer indicates machine speed in km/h or mph.

P - 4WD Indicator - This indicator illuminates when four-wheel drive is enabled.

Q - Differential Lock Indicator - This indicator illuminates when the differential lock is engaged.

R - Brake System Alert Indicator - This indicator illuminates when the brake fluid falls below the acceptable level. Troubleshooting is required.

S - Park Brake Indicator - This indicator illuminates when the park brake is partially or fully engaged.

T - Seat Belt Indicator - This indicator illuminates or flashes when the driver seat belt is not secured.

U - Coolant Temperature Gauge - This gauge displays the current engine temperature. If the temperature rises to an overheat condition, the stop indicator (G) illuminates.

Equipment for Non-Road Homologated Machines

X - Denotes which indicators in the instrument cluster are active based on the machine model.

O - Denotes which indicators in the instrument cluster are optional based on the machine model.

Indicators	XUV835	XUV865
Turn Signal	O	O
Electric Power Assist Steering	O	O
Glow Plug (Diesel only)		X
Engine Malfunction	X
4WD	X	X
Differential Lock
Brake System Alert
Low Engine Oil Pressure	X	X
Gas Gauge	X	X
RPM Gauge	X	X
Coolant Temperature Gauge	X	X

Equipment for Road Homologated Machines

X - Denotes which indicators in the instrument cluster are active based on the machine model.

O - Denotes which indicators in the instrument cluster are optional based on the machine model.

Indicators	XUV835	XUV865
Turn Signal	X	X
Electric Power Assist Steering	O	O
Glow Plug (Diesel only)		X
Engine Malfunction	X
4WD	X	X
Differential Lock
Brake System Alert	X	X
Low Engine Oil Pressure	X	X
Gas Gauge	X	X
RPM Gauge	X	X
Coolant Temperature Gauge	X	X
