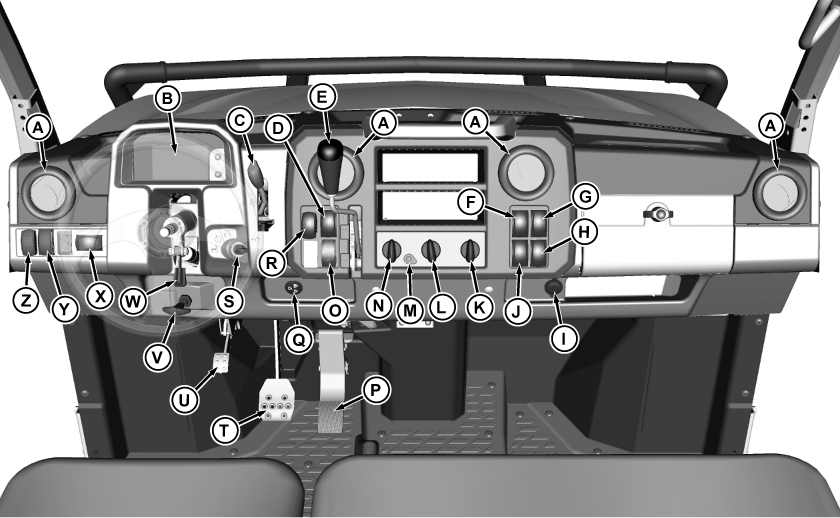

Operator Station Controls

MXT018949-UN-29NOV16

Some controls may not be installed on your machine.

Key	Description	Key	Description
A	Air Vent	N	Blower Speed Control Knob
B	Instrument Cluster Controller	O	Windshield Washer Switch
C	Traction Assist (Differential Lock) Lever	P	Accelerator Pedal
D	Beacon Light Switch	Q	Park Brake Alarm
E	Transaxle Shift Lever	R	2WD/4WD Switch
F	Accessory Lights Switch	S	Ignition Key Switch
G	Accessory Lights Switch	T	Brake Pedal
H	Accessory Lights Switch	U	Park Brake Pedal
I	12 V DC Accessory Outlet	V	Park Brake Pedal Release
J	Hazard Lights Switch	W	Tilt Steering Lever
K	Ventilation Selector Knob	X	Turn Signal Switch
L	Temperature Control Knob	Y	Headlight Switch
M	Air-Conditioning Switch	Z	Cargo Box Power Lift Switch
