Using Storage Areas

Under Machine Hood

An optional Storage Tub Kit is available for machines without HVAC. See your John Deere dealer.

Avoid injury! Never store flammable, heavy, or loose breakable objects in the storage tub. Always latch hood before operating machine.

Avoid damage! Do not store items that prevent the hood from closing properly. Properly secure loose or sharp items. These items can damage the storage tub or other items within the tub.

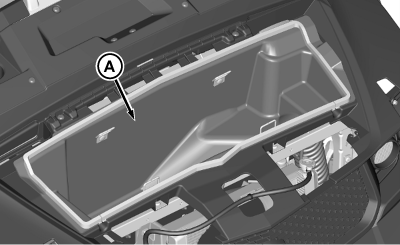

MXT018953-UN-01DEC16

1. Open hood to access the storage tub (A).

2. To prevent damage from movement while operating the machine, secure all items.

3. Close hood.

Under Bench Seat

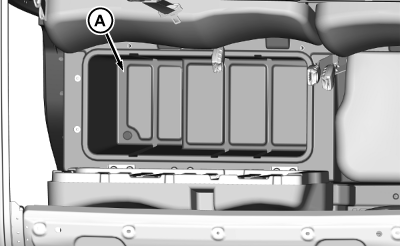

MXT018954-UN-01DEC16

1. Raise passenger seat to access the storage tray (A).

2. To prevent damage from movement while operating the machine, secure all items.

3. Lower seat.
