Adjusting Operator Seat

1. Avoid injury! Never adjust seat while machine is moving. Stop machine before adjusting seat to prevent loss of machine control.

   Stop machine and move transaxle shift lever to N (neutral) position.

2. Lock park brake.

3.

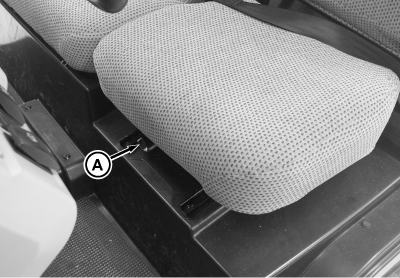

   MXT018955-UN-28AUG17

   Push lever (A) to the left.

---




4. Slide seat forward or rearward to desired position.

5. Release lever.
