Using Seat Belt

Shoulder harness is sensitive. An emergency lock device is built into the belt for your protection. To engage harness, pull harness slowly. Attempting to pull too fast or in a jerking motion engages the locking mechanism and the harness does not release.

Periodically inspect seat belts for wear or damage. See Inspecting Seat Belt in Service Miscellaneous section.

Fasten Belt

1.

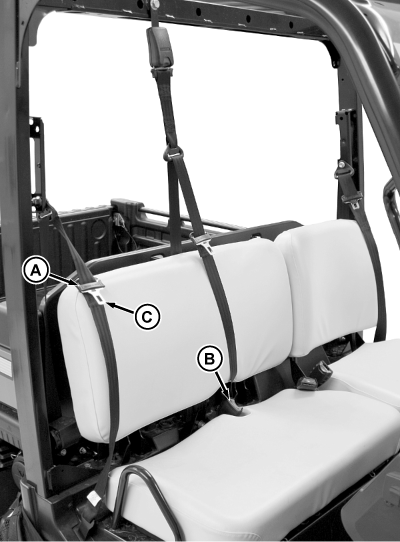

   MXT018956-UN-01DEC16

   Grasp outer seat belt connector (A) from behind seat, pull out and across body to inner connector (B) at inside of seat.

---




2. Adjust outer connector up or down along the belt for the best fit.

3. Push outer connector lower half (C) firmly into inner connector until it locks.

4. Snug the seat belt across the hips, on top of the thighs.

Release Belt

1. To release seat belt, press red button on inner connector.

Adjust Belt

The shoulder harness can be raised for the comfort of taller operators.

1.

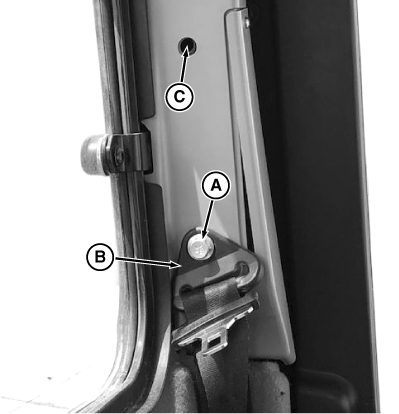

   MXT023341-UN-01AUG18

   Cab Option Shown

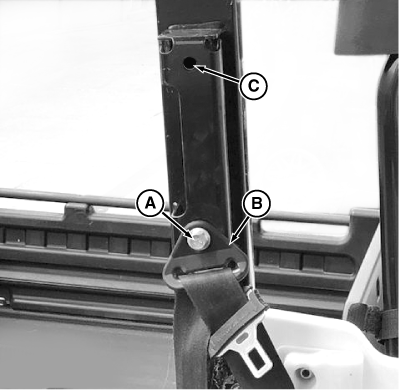

   MXT023342-UN-01AUG18

   No Cab Option Shown

   A - Bolt, Flanged Head

   B - Bracket, Shoulder Harness

   C - Mounting Hole, Upper

   To raise the shoulder harness, remove bolt (A) and bracket (B).

---




2. Position bracket (B) over the upper mounting hole (C).

3. Secure bracket (B) with bolt (A). Tighten bolt to 70.5 N·m ± 13.5 N·m (52 lb·ft ± 10 lb·ft).
