Using Travel Controls

1. Stop machine.

2. Allow engine to come to a low idle speed.

3. Avoid damage! Do not shift gears when vehicle is moving or with engine running higher than low idle speed. Push down brake to stop vehicle motion and engage shift lever with a firm positive action.

   Gears may grind when shifting if engine idle speed is set higher than factory specification.

   Always shift into low range when operating on wet or uneven terrain, or when towing or pushing heavy loads.

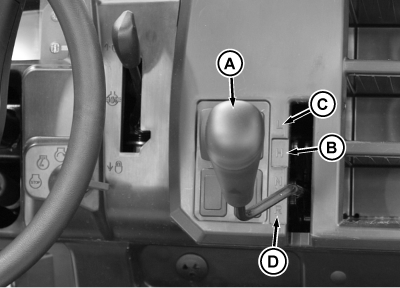

   MXT018957-UN-01DEC16

   Select a gear position:
   • Forward - Push shift lever (A) up to either high (B) or low (C) range.
   • Reverse - Pull shift lever down to reverse (D) gear.



---




4. Look in the direction of machine travel.

5. Avoid injury! Reduce speed before braking or turning, when hauling loads, and while operating around obstacles or on hazardous off-road conditions.

   Push down on accelerator pedal slowly and smoothly to begin machine travel.

6. Release accelerator pedal and apply the brake pedal evenly and firmly to slow down or stop.
