Using HVAC Controls (If Equipped)

1.

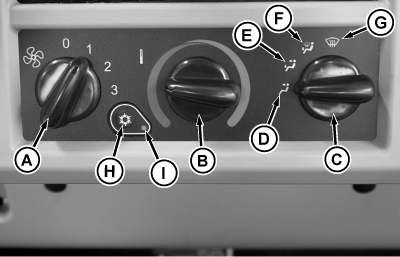

   MXT018980-UN-04JAN17

   To adjust blower speed, turn knob (A):
   • 0 = Off
   • 1 = Low
   • 2 = Medium
   • 3 = High



---




2. To adjust air temperature, turn knob (B):

   1. Turn knob counterclockwise for cooler temperature.

   2. Turn knob clockwise for warmer temperature.

3. To control the direction of the airflow, turn knob (C) to desired setting. There are four airflow selections (D—G):

   • D = Dash Vents
   • E = Dash and Floor Vents
   • F = Defroster Vents and Floor Vents
   • G = Defroster Vents



4. To turn on the air conditioning, press button (H). Indicator light (I) illuminates blue. To turn off the air conditioning, press button again.
