Lubricating Drive Line

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. To line up the grease fitting with the hole in the driveshaft cover, move the machine by hand to rotate shaft (B).

    MXT018983
    MXT018983-UN-04JAN17

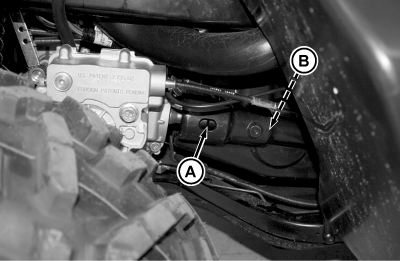

    Viewed from right rear side of machine.

    Lubricate grease fitting (A) on rear driveshaft coupler with one or two shots of grease.
