Checking Engine Oil Level

Avoid damage! Failure to check the oil level regularly can lead to serious engine problems when the oil level is out of the operating range:

• Check oil level before operating.
• Check oil level when the engine is cold and not running.
• Keep oil level between the dipstick marks.
• Shut off engine before adding oil.

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

3.

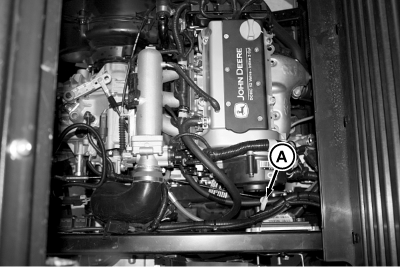

   MXT018985-UN-04JAN17

   Remove dipstick (A) and wipe it clean.

---




4. Install dipstick.

5. Remove dipstick.

6. Check oil level:

   • Oil level must be between fill marks on dipstick.
   • If oil level is low, add oil to bring oil level no higher than upper mark on dipstick.
   • If oil level is above the upper mark, drain to the proper level. Determine cause of this condition and correct.



7. Install dipstick.

8. Lower the cargo box.
