Servicing Air Cleaner Element

Avoid damage! Dirt and debris can enter engine when air cleaner canister is opened. To keep contamination of the intake system to a minimum, do not open canister unless required for scheduled service.

Check filter element more frequently when operating in dusty conditions.

  1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

  2. Allow engine to cool.

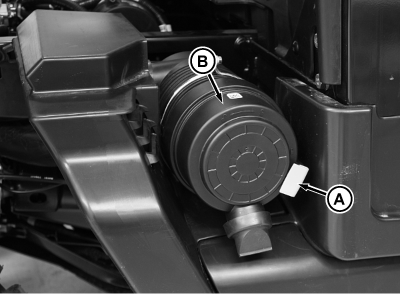

  3. MXT018989
    MXT018989-UN-06JAN17

    Pull out latch (A).


  4. Rotate canister cover (B) counterclockwise to unlock. Remove cover.

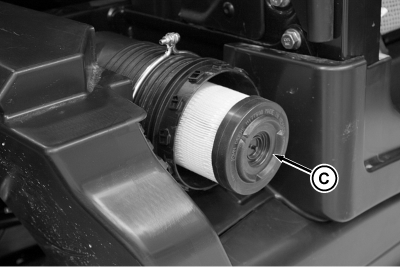

  5. MXT018990
    MXT018990-UN-06JAN17

    Remove and discard filter element (C). Replace with a new filter element.


  6. Install cover over canister and rotate clockwise to lock. Make sure that the dust unloading valve is pointing downward.

  7. Push in the cover latch.

OUMX068,0001204-19-20170111
