Checking Air Intake Hoses and Clamps

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Raise and secure cargo box.

  3. MXT019789
    MXT019789-UN-06JAN17

    MXT019790
    MXT019790-UN-28AUG17

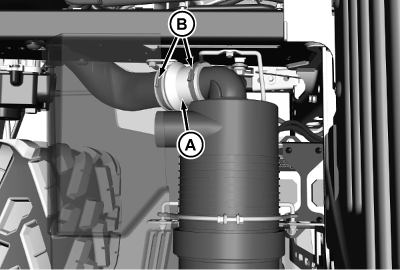

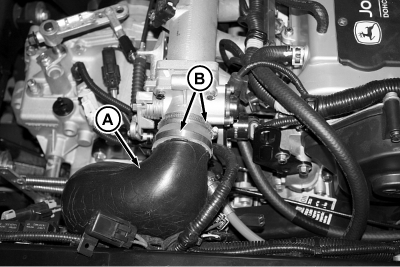

    Check intake hoses (A) for damage or cracking. Replace if necessary.



  4. Check and tighten hose clamps (B) as needed.

  5. Lower the cargo box.

OUMX068,0001205-19-20170106
