Checking Coolant Level

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Allow engine to cool.

3. Open hood.

4. Models without HVAC have the recovery tank mounted on the right side of the radiator. Models with HVAC have the recovery tank mounted on the left side of the radiator.

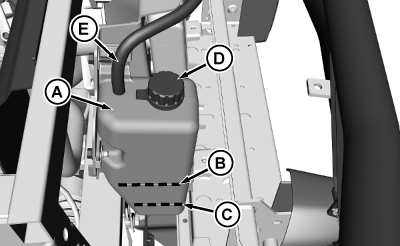

   MXT019795-UN-12JAN17

   Machines without HVAC. Components hidden for a better view.

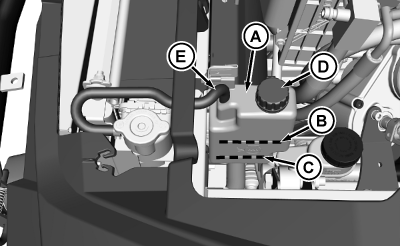

   MXT019805-UN-12JAN17

   Machines with HVAC. Components hidden for a better view.

   Check recovery tank (A) coolant level:
   • If engine is warm, coolant level should be between the FULL line (B) and the LOW line (C).
   • If engine is cold, coolant level should be at the LOW line (C) on the recovery tank.



---




5. Remove recovery tank cap (D) if necessary to add coolant.

6. Add coolant mixture to the recovery tank.

7. Avoid damage! Installing suction hose (E) incorrectly does not allow coolant into the coolant system. Do not allow the bottom of the hose to touch bottom of bottle or bend upwards out of coolant.

   Install and tighten recovery tank cap.

8. Close hood.
