Checking Radiator Hoses and Clamps

1. Park the vehicle safely. (See Parking Safely in the SAFETY section.)

2. Raise cargo box.

3. Open hood.

4. Remove the under hood storage tub, if equipped.

5.
   MXT019807-UN-17JAN17

   Viewed from under right (passenger) side.

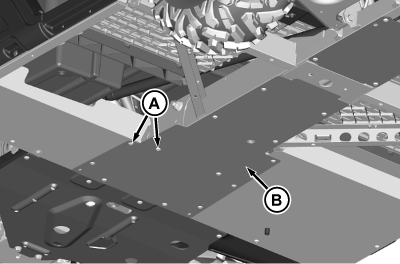

   Remove 13 screws (A) and closeout panel (B) from machine.

---




6. Visually inspect hoses for cracks and wear. Squeeze hoses to check for deterioration. Hoses should not be hard and brittle, nor soft or swollen.


   MXT019811-UN-17JAN17


   MXT019812-UN-17JAN17

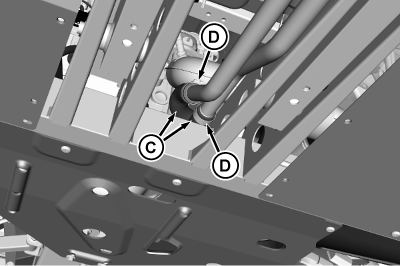

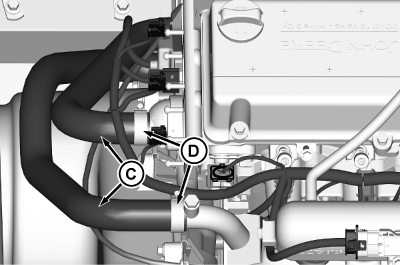

   Check radiator hoses (C) between intermediate tubes and engine for damage or cracking. Replace if necessary.

---




7. Check hose clamps (D) and tighten or replace as needed.

8.
   MXT019810-UN-17JAN17

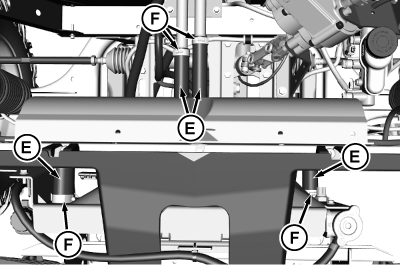

   Check radiator hoses (E) between intermediate tubes and radiator for damage or cracking. Replace if necessary.

---




9. Check hose clamps (F) and tighten or replace as needed.

10. Install the under hood storage tub, if equipped.

11. Install closeout panel with 13 screws.

12. Close hood.

13. Lower cargo box.
