Checking 4WD Front Differential Oil Level

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Allow machine to cool down for at least 1 hour.

3. Avoid damage! Dirt and debris in the oil can damage the 4WD differential. Clean area around opening before removing plug.


   MXT019814-UN-17JAN17

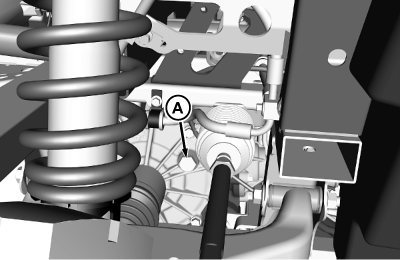

   Fill plug under left front side.

   Remove the fill plug (A) on the left side of the 4WD front differential.

---




4. Oil must be level with the bottom of the fill port. If oil level is low:

   1. Add oil through the fill port until level is correct.

   2. Install and tighten the fill plug to specification.

      Fill Plug	Torque	11—40 N·m (8—30 lb·ft)
