Exit Lighting Operation

MXT019886-UN-17FEB17

Countdown Timer

Function

A method for a “soft” shutdown of lighting after the ignition key switch is turned off.

Operation

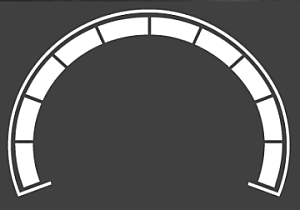

When the ignition key switch is turned off, certain circuits remain on. The bar gauge represents a countdown to power removal.
