Checking Park Brake Fluid

1. Park machine safely on a level surface. (See “Park Machine Safely” in the SAFETY section.)

2. Raise and secure cargo box.

3.
   MXT019889-UN-22FEB17

   Viewed from right rear side of machine.

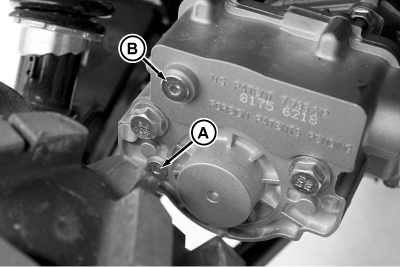

   Remove hex socket plug (A) and check lubricant level in the park brake housing. Fluid level must be at bottom of plug opening.

---




4. If not at the proper level, remove hex socket plug (B). Add recommended fluid until at bottom of plug (A) opening. Install plug (A).

5. Install plug (B).
