Checking Brake Lines

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Protect any painted surfaces from expelled brake fluid and wipe any areas of excess brake fluid.

3. Open hood.

4.
   MXT019890-UN-22FEB17

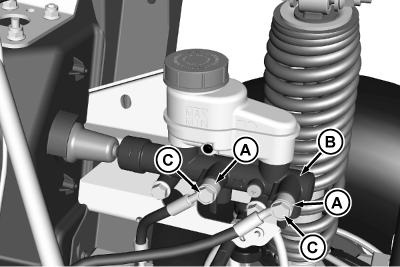

   Check the brake line fittings (A) on the side of the master cylinder (B) for leaks.

---




5. Tighten banjo bolts (C), as needed, to specification.

   Banjo Bolts	Torque	27 N·m (20 lb·ft)

6. Rotate wheels for access to brake calipers.

7.
   MXT019892-UN-22FEB17

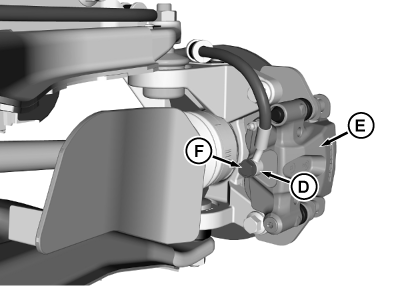

   Left front brake line shown.


   MXT019893-UN-22FEB17

   Left rear brake line shown.

   Check brake line fitting (D) on each brake caliper (E) for leaks. Tighten banjo bolt (F), as needed, to specification.

   Banjo Bolt	Torque	27 N·m (20 lb·ft)

---




8. Lower hood.

9. Start vehicle and press brake pedal. If leaks are still found, see your John Deere Dealer for service.
