Replacing Headlight

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Locate headlight housing under the front fender.


Standard Bulbs

  1. Avoid injury! Halogen light bulb contains gas under pressure. The bulb may shatter if the glass is scratched or dropped. Wear eye protection and handle bulb with care when replacing.

    Avoid damage! Do not touch glass portion of new bulb with bare skin. Contact with oils or dirt reduces bulb life. Handle bulb by the base or with a clean cloth or gloves.

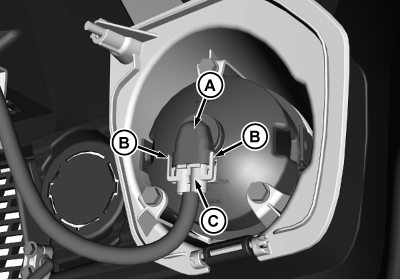

    MXT019894
    MXT019894-UN-23FEB17

    Rotate bulb socket (A) 1/8 of a turn counterclockwise and remove the socket from the housing.


  2. Pull outward on tabs (B) and disconnect wire connector (C) from socket. Discard the bulb/socket assembly.

  3. Connect wiring connector to new bulb/socket assembly. Install the assembly into housing and rotate 1/8 turn clockwise to lock in place.

  4. Test headlight function.


Dual Beam Light

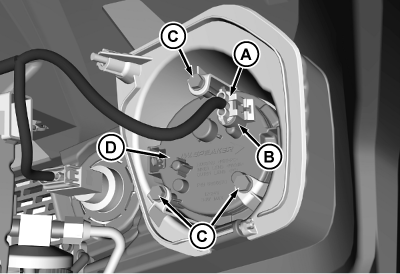

  1. MXT019895
    MXT019895-UN-23FEB17

    Disconnect wiring connector (A) from socket (B).


  2. Remove three screws (C).

  3. Remove light assembly (D) from bezel.

  4. Install new light assembly with three screws.

  5. Connect wiring connector to socket.

  6. Test headlight function.

OUMX068,0001244-19-20170223
