Removing and Installing Seats

Removing and Installing Bucket Seat

1. Tip seat forward.

2.

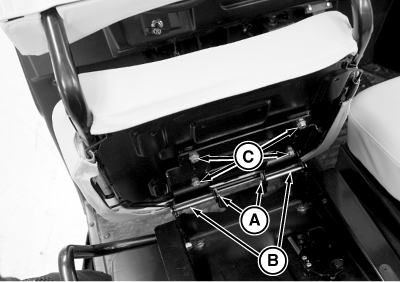

   MXT021074-UN-24AUG17

   Remove cotter pins (A) and drilled pins (B).

---




3. If removing seat from bracket, remove bolts (C).

4. Remove seat from the bracket.

5. Installation is the reverse of removal.

6. Tighten seat bracket bolts to specification:

   Seat Bracket Bolts	Torque	10 N·m (7.4 lb·ft)

Removing and Installing Bench Seat

1. Tip seat forward.

2.

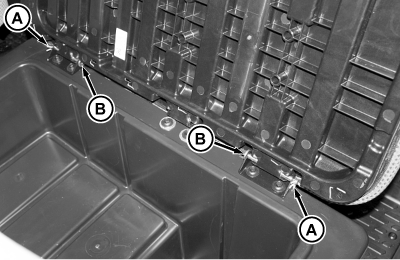

   MXT019897-UN-23FEB17

   Remove spring locking pins (A) and pins (B).

---




3. Remove seat from brackets.

4. Installation is the reverse of removal.
