Replacing Cab Air Filter (If Equipped)

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. MXT019898
    MXT019898-UN-24FEB17

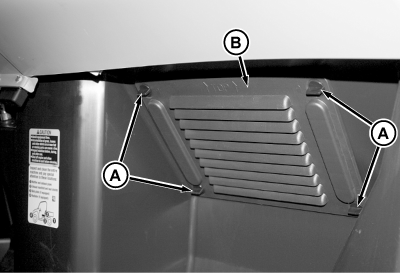

    Rotate four knobs (A) a 1/4 turn and remove filter cover (B).



  3. MXT019899
    MXT019899-UN-24FEB17

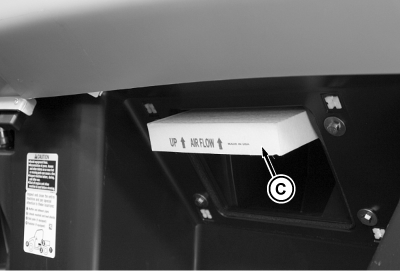

    Remove and inspect filter (C). Replace as necessary.



  4. Install new filter. Make sure that the arrows on the filter point up.

  5. Install filter cover.

OUMX068,0001246-19-20170908
