Lifting Machine

1. Park machine safely. (See Parking Safely in the SAFETY section.)

2. Avoid injury! The machine can fall or slip from an unsafe lifting device or supports.

   • Use a safe lifting device rated for the load to be lifted.
   • Lower machine onto jack stands or other stable supports and block wheels before servicing.



   Avoid damage! To prevent slipping, be certain to include bolt heads (A) and embossed area (B) inside the jack cup.

   Remove all attachments before lifting machine.

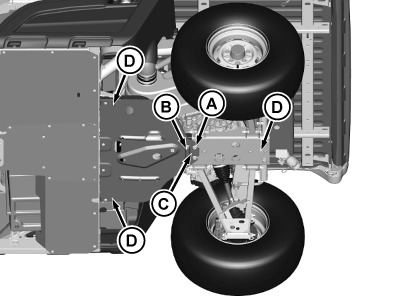

   MXT020830-UN-09SEP17

   Your machine model may not be shown, but jack locations are as shown.

   Safely lift the rear of the machine at frame point (C).

---




3. Place jack stands or other stable supports under three frame locations (D).

4. If only lifting rear of machine, block front wheels remaining on ground to avoid movement of the machine.

5.

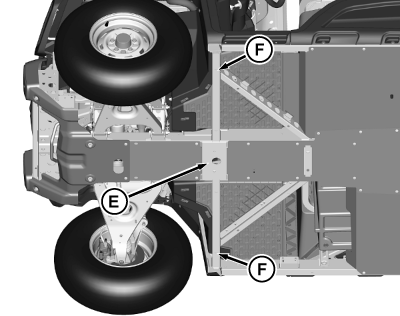

   MXT019902-UN-27FEB17

   Your machine model may not be shown, but jack locations are as shown.

   Safely lift the front of the machine at frame point (E) or locations (F). Place jack stands or other stable supports under two machine frame locations (F).

---




6. If only lifting front of machine, block rear wheels remaining on ground to avoid movement of the machine.

7. To lower the machine, lift front and/or rear of machine, and remove jack stands or supports. Lower machine.
