Opening and Closing Hood

Avoid injury! Never store flammable, heavy, or loose breakable objects in the storage tray. Always latch hood before operating machine.

Avoid damage! Do not store items that prevent the hood from closing properly. Properly secure loose or sharp items, which damage the storage tray or other items within the tray.

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2.

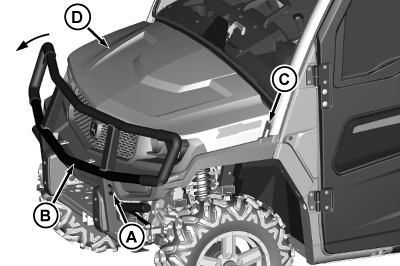

   MXT019906-UN-28FEB17

   Pull out on locking pin (A) on each side of the front bumper (B).

---




3. Rotate the top of the front bumper forward.

4. Release the rubber latch (C) attached to each side of the hood (D).

5. Raise the hood.

6. Close hood. Secure with two rubber latches.

7. Lower front bumper and secure with locking pins.
