Adjusting Suspension (Standard Shocks)


Preload Adjustment

When to Adjust:

  • Front preload adjustment - increase preload if operating with front attachment or under heavy load condition.
  • Rear preload adjustment - increase preload if operating under heavy load condition.

How to Adjust:

  1. Park machine safely. (See Parking Safely in the SAFETY section).

  2. Block tire not intended to be lifted off the ground.

  3. Raise the machine with a safe lifting device and lower machine onto jack stands or other stable support.

  4. MXT019909
    MXT019909-UN-01MAR17

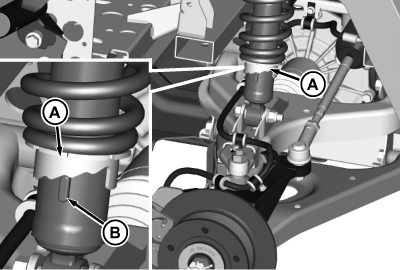

    Left front side shown.

    Using the supplied spanner wrench, securely engage the adjustable preload collar (A) on shock. Rotate preload collar to desired preload condition making sure to engage detent feature (B) between shock and preload collar.


  5. Avoid injury! Be sure that both front preload collars are set to the same position. Be sure that both rear preload collars are set to the same position.

    Repeat procedure on all shocks as needed.

OUMX068,000124C-19-20170301
