Checking and Replacing Fuses

Avoid damage! If incorrect replacement fuses are used, the electrical system can be damaged. Replace the bad fuse with a fuse of the same amperage rating.

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Open the hood.

3.

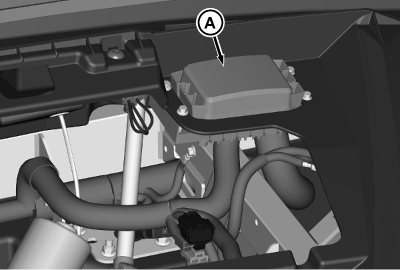

   MXT020089-UN-05APR17

   Remove load center cover (A).

---

Load Center—E Series

1. Fuse identification:

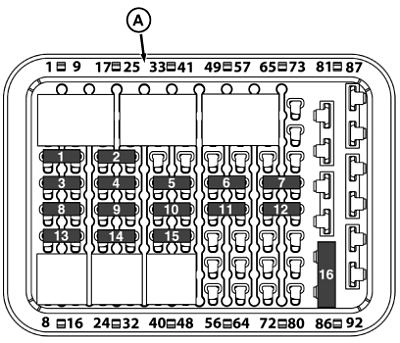

   MXT019911-UN-04APR17

   Position	Circuit	Fuse Size
   1	Battery Power	20 A
   2	Work Lights	20 A
   3	ECU Battery Power	5 A
   4	Relayed Key Power	20 A
   5	Dash Attachments	20 A
   6	Dash Power Port	10 A
   7	Diagnostic Power	5 A
   8	Starter Motor Solenoid	20 A
   9	Engine	20 A
   10	Auxiliary	20 A
   11	Fuel Pump	20 A
   12	Flasher Module	15 A
   13	Ignition Key Switch Power	20 A
   14	AMS Component Power	10 A
   15	Headlights	10 A
   16	Engine Fan	30 A

---




2. Pull fuse from the load center (A).

3. Look for a broken filament in the fuse. (See Checking Fuse Filaments in SERVICE MISCELLANEOUS section.)

4. Push new fuse of the correct amperage rating into correct position in the load center.

5. Install cover and close hood.

Load Center—M Series

1. Fuse identification:

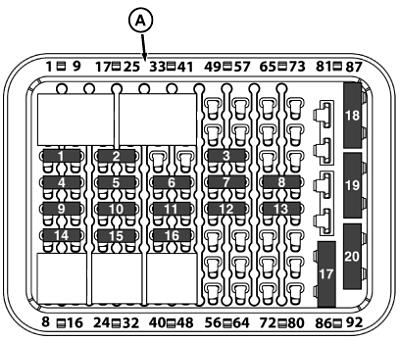

   MXT019912-UN-04APR17

   Position	Circuit	Fuse Size
   1	Battery Power	20 A
   2	Work Lights	20 A
   3	Glove Box Power Port	10 A
   4	ECU Battery Power	5 A
   5	Relayed Key Power	20 A
   6	Dash Attachments	20 A
   7	Dash Power Port	10 A
   8	Diagnostic Power	5 A
   9	Starter Motor Solenoid	20 A
   10	Engine	20 A
   11	Auxiliary	20 A
   12	Fuel Pump	20 A
   13	Flasher Module	15 A
   14	Ignition Key Switch Power	20 A
   15	AMS Component Power	10 A
   16	Headlights	10 A
   17	Engine Fan	30 A
   18	Load Shed	40 A
   19	Front Attachment Power	20 A
   20	Dash Attachment Power	20 A

---




2. Pull fuse from the load center (A).

3. Look for a broken filament in the fuse. (See Checking Fuse Filaments in SERVICE MISCELLANEOUS section.)

4. Push new fuse of the correct amperage rating into correct position in the load center.

5. Install cover and close hood.

Load Center—R, M Series with A/C

1. Fuse identification:

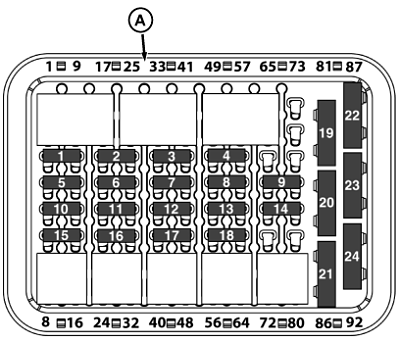

   MXT019913-UN-04APR17

   Position	Circuit	Fuse Size
   1	Battery Power	20 A
   2	Work Lights	20 A
   3	HVAC Controller	10 A
   4	Glove Box Power Port	10 A
   5	ECU Battery Power	5 A
   6	Relayed Key Power	20 A
   7	Dash Attachments	20 A
   8	Dash Power Port	10 A
   9	Diagnostic Power	5 A
   10	Starter Motor Solenoid	20 A
   11	Engine	20 A
   12	Auxiliary	20 A
   13	Fuel Pump	20 A
   14	Flasher Module	15 A
   15	Ignition Key Switch Power	20 A
   16	AMS Component Power	10 A
   17	Headlights	10 A
   18	HVAC Compressor	7.5 A
   19	HVAC Fan	30 A
   20	HVAC Blower Motor	25 A
   21	Engine Fan	30 A
   22	Load Shed	40 A
   23	Front Attachment Power	20 A
   24	Dash Attachment Power	20 A

---




2. Pull fuse from the load center (A).

3. Look for a broken filament in the fuse. (See Checking Fuse Filaments in SERVICE MISCELLANEOUS section.)

4. Push new fuse of the correct amperage rating into correct position in the load center.

5. Install cover and close hood.

Rear Attachment Fuse

1. Raise cargo box.

2.

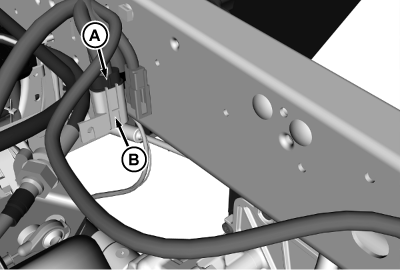

   MXT020090-UN-11APR17

   Locate fuse holder (A) on the right rear frame.

---




3. Remove cover (B) and remove fuse.

4. Look for a broken filament in the fuse. (See Checking Fuse Filaments in SERVICE MISCELLANEOUS section.)

5. Push new fuse of the correct amperage rating into fuse holder:

   Position	Circuit	Fuse Size
   —	Rear Attachment	40 A

6. Install cover on the fuse holder.

7. Lower cargo box.

Electronic Power Assisted Steering (EPAS) Fuse (If Equipped)

1.

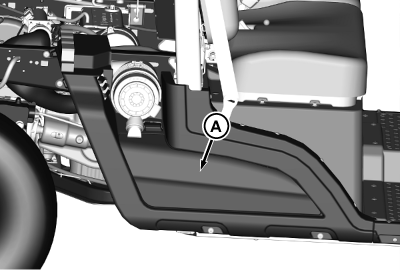

   MXT020091-UN-11APR17

   Remove access panel (A).

---




2.

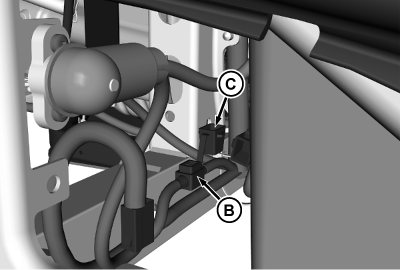

   MXT020092-UN-11APR17

   Components hidden for a better view.

   Locate fuse holder (B).

---




3. Remove cover (C) and remove fuse.

4. Look for a broken filament in the fuse. (See Checking Fuse Filaments in SERVICE MISCELLANEOUS section.)

5. Push new fuse of the correct amperage rating into fuse holder:

   Position	Circuit	Fuse Size
   —	Electronic Power Assisted Steering (EPAS)	50 A

6. Install cover on the fuse holder.

7. Install access panel.

Winch Power Harness Fuse (If Equipped)

1.
   MXT020091-UN-11APR17

   Remove access panel (A).

---




2.

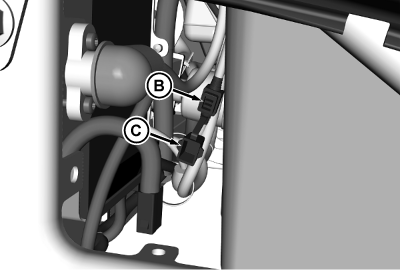

   MXT020093-UN-11APR17

   Locate fuse holder (B).

---




3. Remove cover (C) and remove fuse.

4. Look for a broken filament in the fuse. (See Checking Fuse Filaments in SERVICE MISCELLANEOUS section.)

5. Push new fuse of the correct amperage rating into fuse holder:

   Position	Circuit	Fuse Size
   —	Winch Power Harness	40 A

6. Install cover on the fuse holder.

7. Install access panel.
