Inspecting Alternator Belt

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. MXT020115
    MXT020115-UN-03MAY17

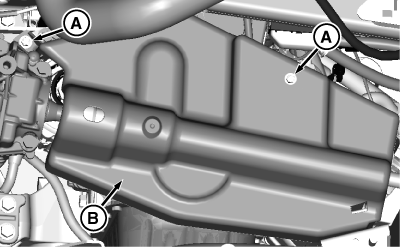

    Remove two bolts (A) and belt cover (B) from machine.


  3. MXT020824
    MXT020824-UN-09SEP17

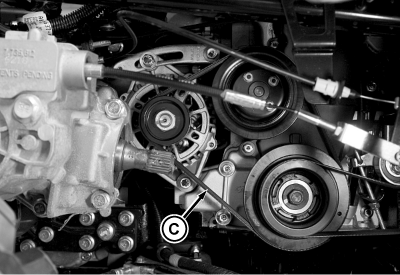

    Inspect belt (C) for wear or damage. Replace if worn or damaged. (See your John Deere dealer for replacement.)

OUMX068,000128E-19-20170909
