Cleaning Primary Drive Clutch and Enclosure

Avoid damage! Never lubricate any part of the primary drive clutch.

1. Park the machine safely. (See Parking Safely in the SAFETY section.)

2. Raise and secure cargo box.

3.
   MXT020888-UN-18OCT17

   Loosen clamp (A).

---




4. Remove seven screws (B) and five push retainers (C).

5. Remove side panel and air intake hose (D) as an assembly.

6.
   MXT020125-UN-04MAY17

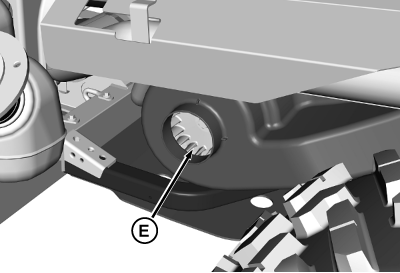

   Through the access hole (E), use compressed air to blow dust and debris out of clutch fan area.

---




7.
   MXT020126-UN-04MAY17

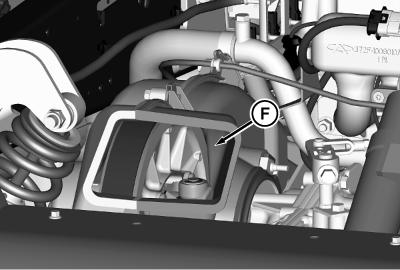

   Check exhaust port (F) for debris.

---




8.
   MXT020127-UN-04MAY17

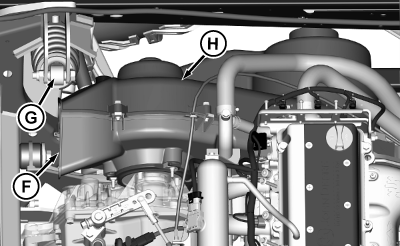

   If debris is found inside the exhaust port (F), remove shock (G), 11 bolts, and outer clutch enclosure cover (H).

---




9.
   MXT020128-UN-05MAY17

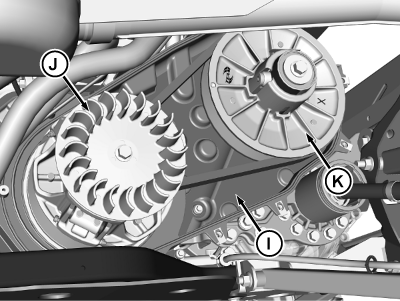

   Clean inside clutch enclosure cover, clutch enclosure base (I), and around drive (J) and driven clutch (K) assemblies.

---




10. Install cover.

11. Install shock.

12. Install air intake hose and side panel.

13. Lower the cargo box.
