Replacing LED Work Lights


Front Light

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

  2. Remove the headliner, if equipped.

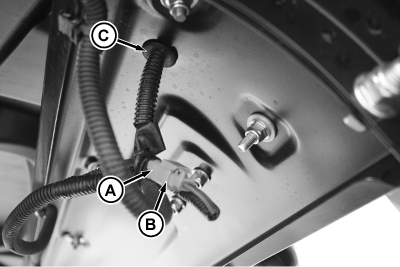

  3. MXT020783
    MXT020783-UN-30AUG17

    Unplug light harness connector (A) from the roof harness connector (B).


  4. Push grommet (C) and light harness through the hole in Protective Structure. Remove grommet from light harness.

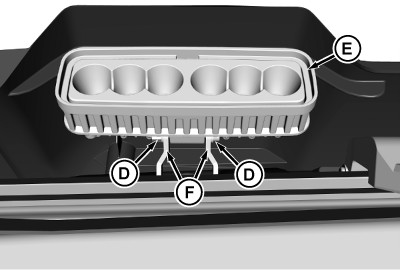

  5. MXT020784
    MXT020784-UN-30AUG17

    Remove hardware (D) securing light assembly (E) to bracket (F) and remove light assembly.


  6. Loosely install new light assembly to bracket with hardware.

  7. Route the light harness through the hole in the Protective Structure.

  8. Plug light harness connector into the roof harness connector.

  9. Install grommet onto light harness and press into the hole in the Protective Structure. Make sure that the grommet is seated properly.

  10. Position the light as desired and tighten the hardware.

  11. Install the headliner, if equipped.


Rear Light

  1. Park the machine safely. (See Parking Safely in the SAFETY section.)

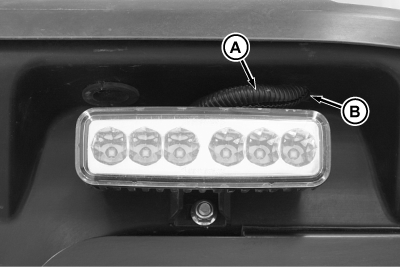

  2. MXT020785
    MXT020785-UN-30AUG17

    To access light harness connector, pull light harness (A) out from the hole (B) in the roof.


  3. Unplug light harness connector from the roof harness connector.

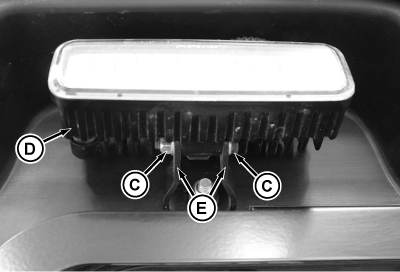

  4. MXT020786
    MXT020786-UN-30AUG17

    Remove hardware (C) securing light assembly (D) to bracket (E) and remove light assembly.


  5. Loosely install new light assembly to bracket with hardware.

  6. Plug light harness connector into the roof harness connector.

  7. Route light and roof harness back through the hole in the roof.

  8. Position the light as desired and tighten the hardware.

OUMX068,0001370-19-20170908
